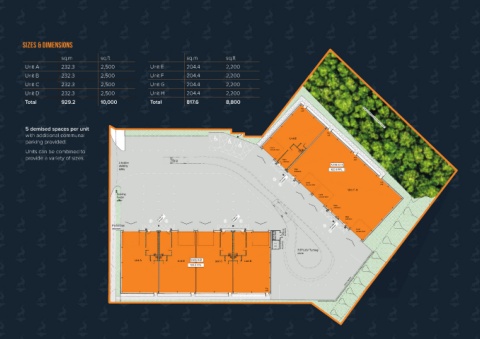

SIZES & DIMENSIONS

sq.m sq.ft sq.m sq.ft
Unit A 232.3 2,500 Unit E 204.4 2,200
Unit B 232.3 2,500 Unit F 204.4 2,200
Unit C 232.3 2,500 Unit G 204.4 2,200 Plot 8, The Hub at Kingshill Park
Schedule of Accommodation
Unit D 232.3 2,500 Unit H 204.4 2,200
PLOT 10 Plot 8, Units A-D
Total 929.2 10,000 Total 817.6 8,800
E A S T
FIDDIE Plot 8, Units E-H
Fire
exit 1 x 204.6m² (2,202sqft) GIA Class 4&6 Workshop (Unit E)
1 x 621.8m² (6,692sqft) GIA Class 4&6 Workshop (Unit F-H)
Total GIA of units A-D: 944.0m 2
5 demised spaces per unit Total GIA of units E-F: 830.5m 2
Existing established tree belt to remain
charger
with additional communal Double EV Fire
exit
parking provided. Unit E Car Parking - 53 spaces including 3 disabled spaces
Level
Units can be combined to access door Site Area - 6,110.8m² (1.510 acres)
provide a variety of sizes. W d i e n e d Fire
bellmouth Main exit Key
2.5x45m entrance
1 + 2 6 . 2 visibility U E s t i n - H
DATUM s a l p y Main 122.0 FFL Soft Landscaping
entrance
Double EV charger Concrete service yard / parking
a Level c e s d s o r o Fire
c
exit
U - F t i n H
Existing Level Bitmac paving
feeder a c c e s d s o r o
pillar
Grey granite chip borders
Main
entrance
Double EV Double EV Main
charger
charger
entrance
Pedestrian Double EV
access charger Level
access door
bin store
Communal
5 . 7 L T G T V n i n r u g
Communal
cycle store
circle
Existing private access road
Unit A Unit B Units A-D Unit C Unit D
1 2 F 2 . 2 F L
Existing
bellmouth B9119
removed and Armco barrier
infilled
Fire
exit
G Tender issue 13.02.26 PP GW
F Updated as per comments 18.12.25 PP GW
E Layout adjusted, areas updated, project name changed 01.12.25 PP GW
D Bin/cycle store, FFLs and datum added 04.11.25 GW PP
C Setting out co-ordinates added 03.11.25 GW PP
B General update to layout 14.10.25 GW PP
A First issue - GW PP
rev description date by checked
DO NOT SCALE. Use figured dimensions only. All dimensions, spot levels and drainage positions to be
checked on site by Contractor prior to construction. Any discrepancies to be reported back to Space
Solutions. Drawings to be read & fully understood before work commences. IF IN DOUBT ASK.
Bishop House, 50 Carden Place,
Aberdeen, AB10 1UP
tel: +44(0)1224 218 500
www.spacesolutions.co.uk
TENDER
client date
Knight Property Group Oct 2025
address drawn by checked
Site Layout Plan Plot 8, The Hub at Kingshill, Westhill GW PP
title scale
Scale 1:200 Site Layout Plan As noted @ A1
0 0 5 10 20
A_200 Site Masterplan
job number dwg no rev
227074 A_201 G
Scale in metres - 1:200 scale bar
